Eco Solvent Printer SJ-1260S & SJ-1260i image Eco Solvent Printer SJ-1260S & SJ-1260i image

Whether you’re just starting out or wanting to expand production, SinoColor Storm SJ-1260S & SJ-1260E offer all the quality and versatility at an unbeatable price. It delivers the value you need to quickly and easily build your business.

overview images

Epson F1080, i3200 printheads available.  Meet the requirement of different clients.

overview images

Big Functional Control Panel

Adopts the latest program Intelligent Error Auto-Detection boards, it can guide user to find solution very quickly.

overview images

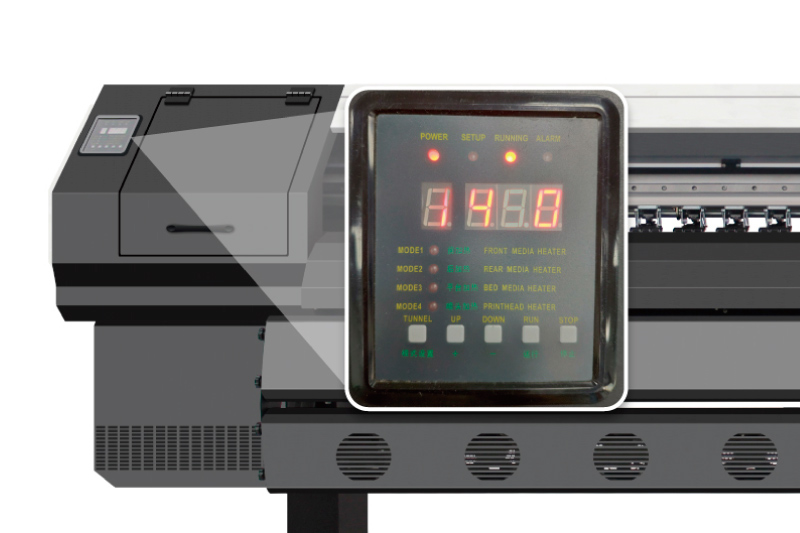

Integrated Temperature Control

Control the front, middle and rear heater in one place. Integrated heater controller have less fault than separate ones.

overview images

Well Designed Feeding System

Two sets media feeding system are standard equipped. Enable to install both 3.2m heavy banner and 2 rolls small size paper.

overview images

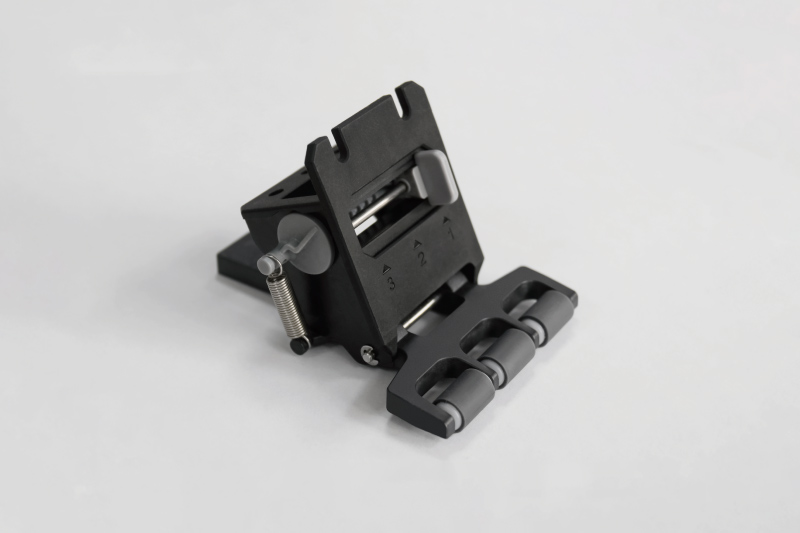

Wide Pinch Roller

Wide pinch roller keeps smooth movement of the media. And it has proper pressure to ensure accurate media step while not make any footprint of the pinch roller.

overview images

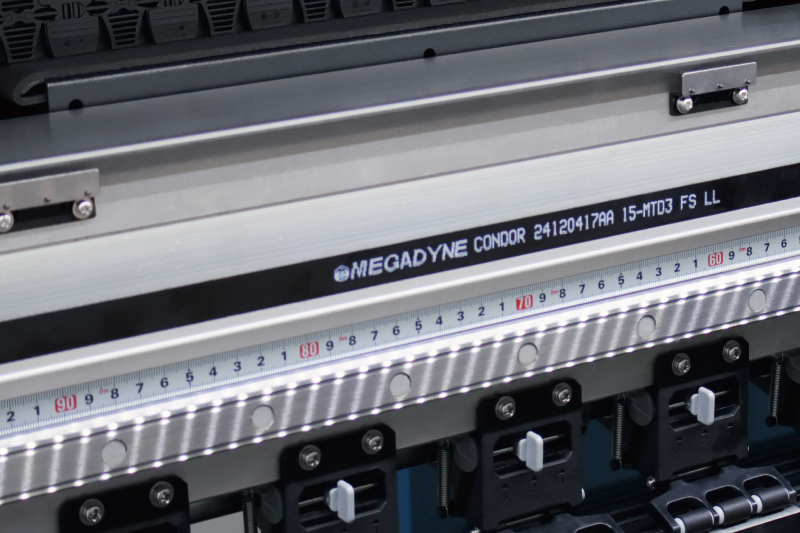

Megadyne Belt. High quality. Durable

overview images

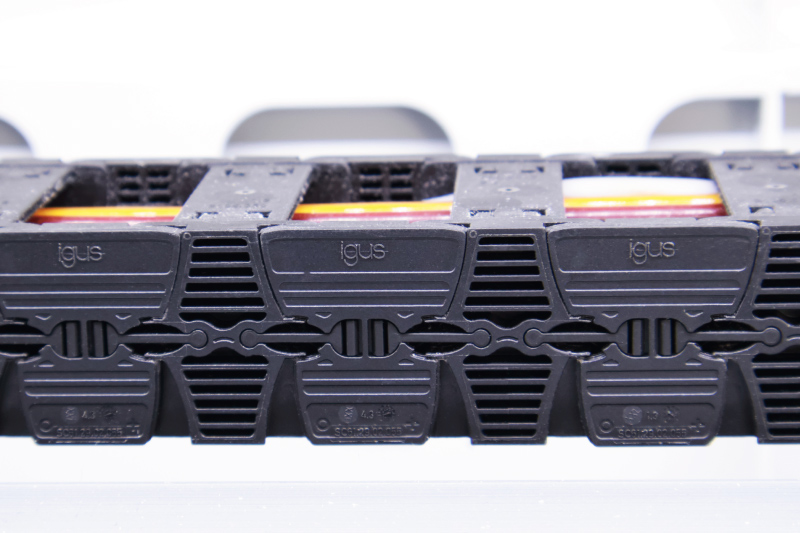

IGUS Drag Chain from Germany

IGUS drag chain itself is a guarantee of quality, takes the printer stability to a new level. Effectively protect ink tube and cables

overview images

Anti-collision Function

Anti-collision system is equipped to protect the printhead and carriage all the time

overview images

Heating and Drying System

Front and middle and rear heating system, frond drying fan are standard equipped to help dry the printed material fast.

overview images

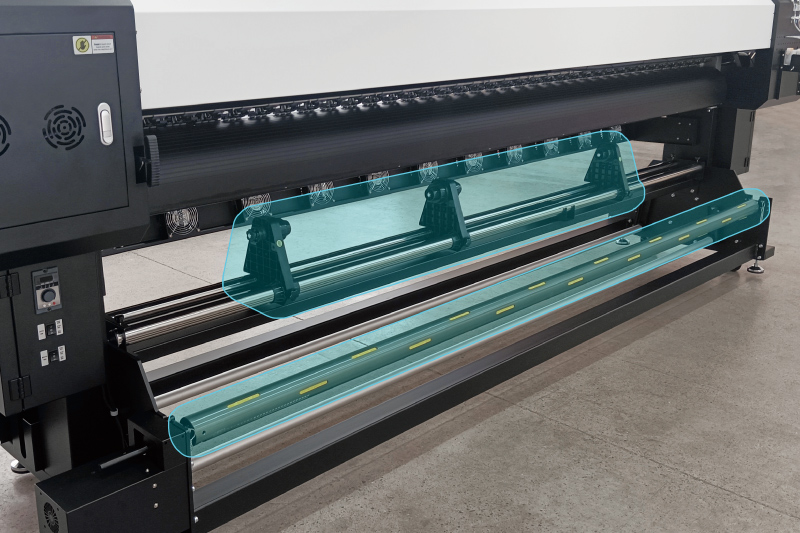

Tension Take-up System With Inflatable Roller (Optional)

It gives material a continuous and balanced pulling strength to assure a perfect material collecting, it is specially good for thin and soft type material like fabric, ceiling film etc.

overview images

Aluminum Moulding Frame

Increase machine accuracy and extend machine durability

overview images

Double Slider

Since the double heads printer has wider carriage, double slider is necessary to ensure stable movement of the carriage.

overview images

Variable Dot Print Technology

Permitting the printer to provide smooth gradations, exceptional solid colors and optimum image quality in all print modes

overview images

LED Lamp Strip is Equipped

Uses could check out the print result more easily

APPLICATION

application images
application images
application images
application images
application images
application images
Model NO. SJ-1260S SJ-1260i SJ-1260E
Printhead 2 x Epson i3200 1 x Epson i3200 2 x Epson F1080
Resolution(dpi) 2400dpi max 2400dpi 1440dpi
Media Width 3.2 meter
Types Flex Banner, Vinyl, One Way Vision, Banner Cloth, Window Film, Mesh…
Speed Draft 46 sqm/h 28 sqm/h 27 sqm/h
Standard 34 sqm/h 21 sqm/h 20 sqm/h
Quality 24 sqm/h 16 sqm/h 15 sqm/h
Ink Color CMYK CMYK CMYK / CMYK Lc Lm
Ink Type Eco Solvent Ink
Ink Droplet 1.5-21pl Variable
Cleaning Automatic Cleaning, Anti-Clogging Flash Function & Capping System
Feed & Take Up Automatic Media Feeding (Standard)  & Take Up System (Optional)
Environment Temperature: 20-28°C, Humidity: 40-60%
Rip Software Maintop (Standard) /  FlexiPrint (Optional)
Interface USB3.0
Power Machine 50/60HZ, 110/220V, 1200W
Size & Weight Machine L4360 W780 H1500 (mm) / 480 KG
Packing L4610 W1000 H740 (mm) / 640 KG
