DESCRIPTION

Request for Quote

SinoColor MF series multi-functional oil thermal transfer machine is suitable for both thermal transferring on fabrics and low temperature transferring on cotton materials.With high quality oil heating system, MF machine is a perfect choice for fabric and clothing printing.

FEATURES

   * Both thermal transferring and low temperature transferring are available
   * Perfect result of transferring
   * It uses duplex oil tank to get more even temperature output
   * Precise mechanical structure
   * Adjustable air pressure control system improves transferring results of different kinds of materials

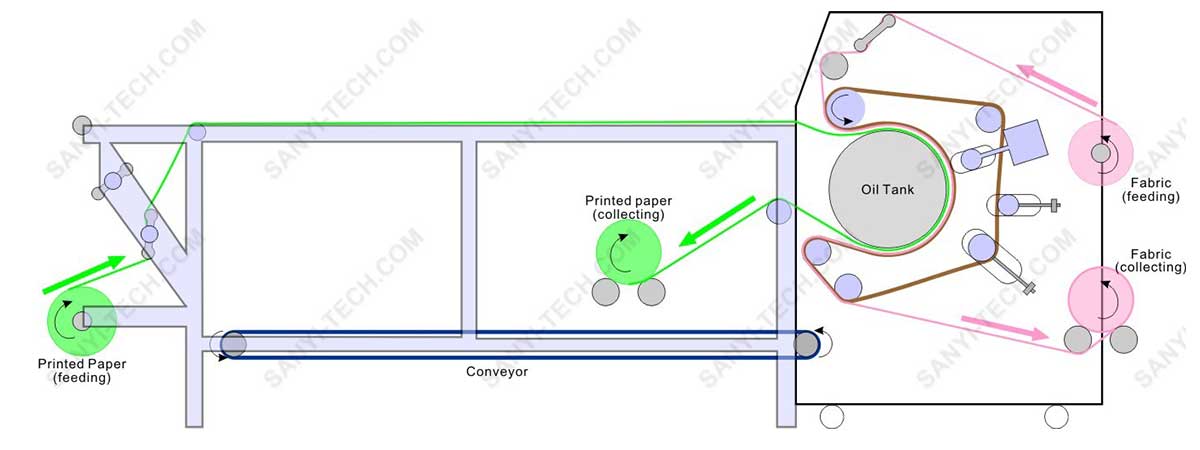

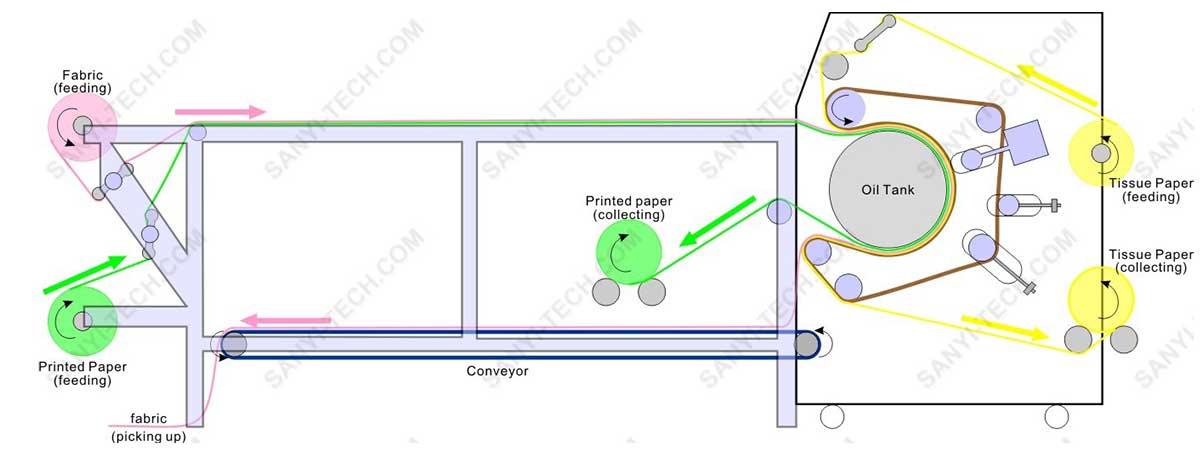

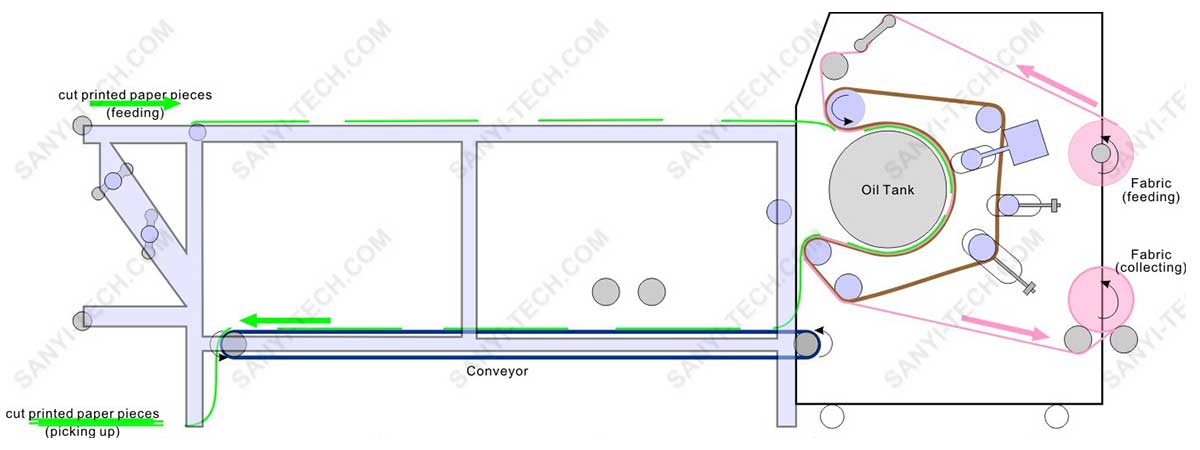

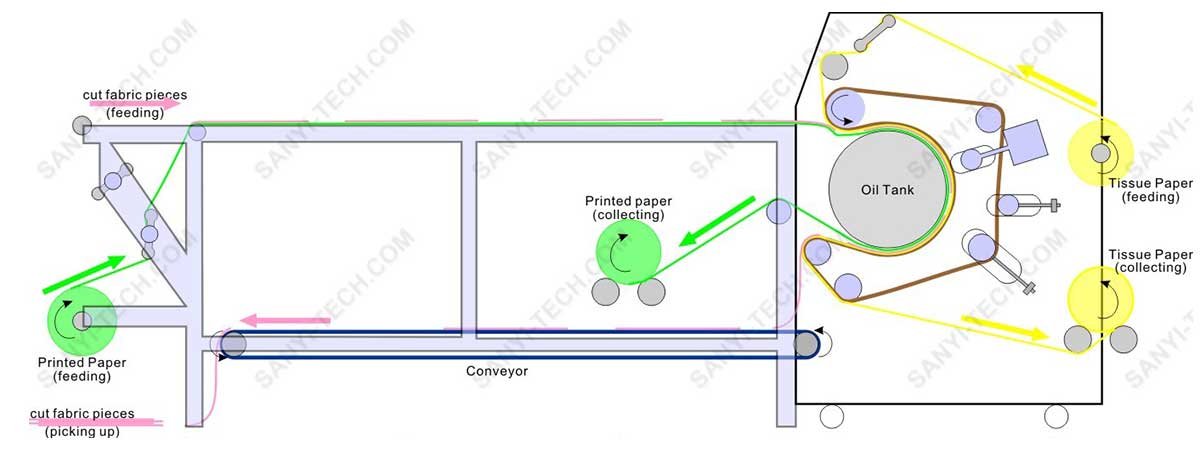

   * It feeds and collects rolls and clothing pieces in parallel by roll- to-roll system without drifting the materials to left or right
   * Blanket can be separated from oil tank easily
   * Customized machine to work with different power supplies

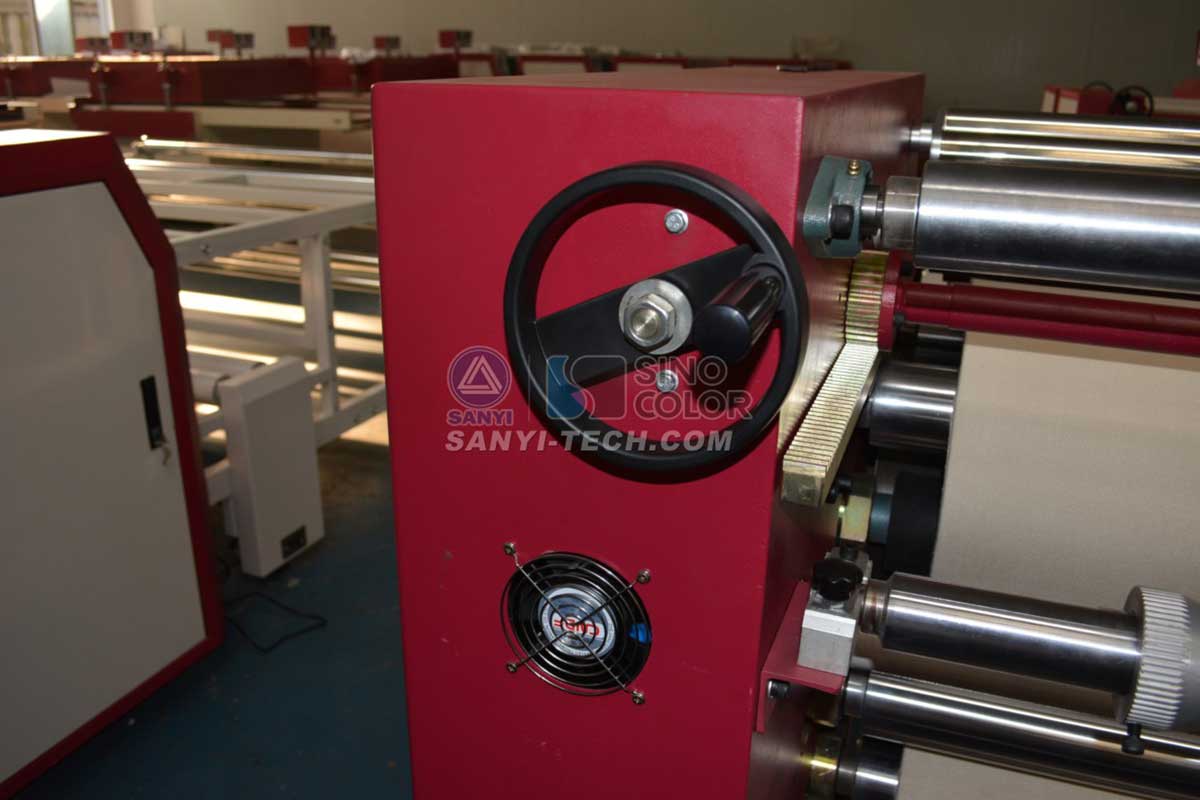

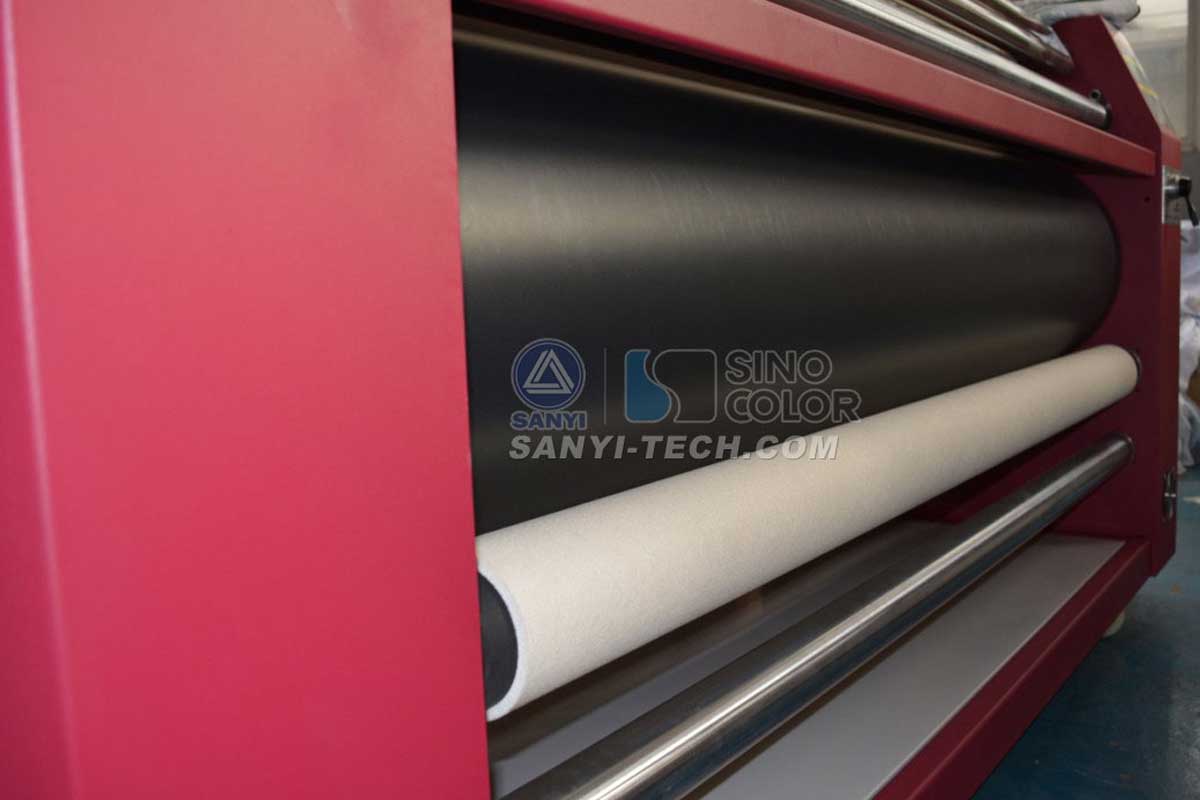

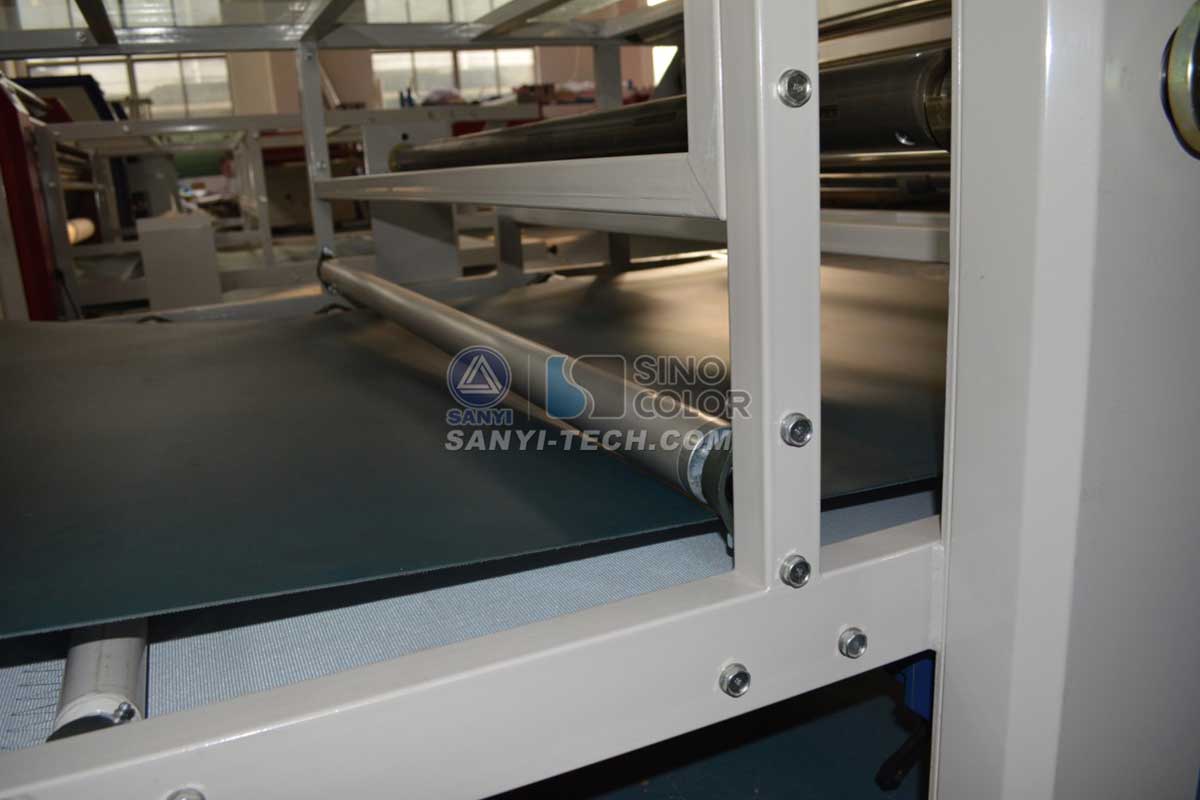

GALLERY

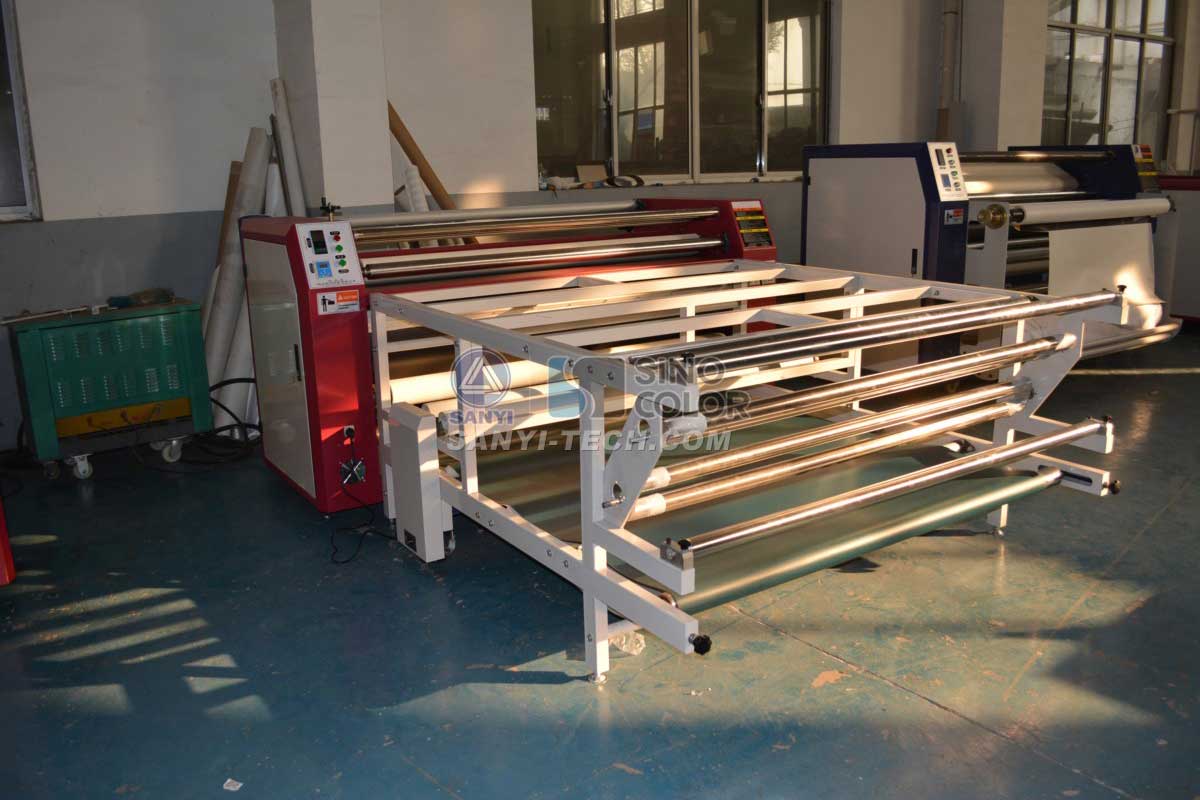

gallery images
gallery images
gallery images
gallery images

Specifications

Model No. MF-1700 MF-2600 MF-3200
Suitable Media Polyester fabric rolls, garments, flags, tent, blanket, curtain etc
Power Supply 3 phases, 220v/60hz,3 phases , 380v/50hZ
Power 18kw 30kw 36kw
Quantity of electric element 12pcs (1.5kw) 12pcs (2.5kw) 12pcs (3.0kw)
Diameter of heating roller 420mm(16.5″)
Width of Blanket 1730mm(68″) 2600mm(102″) 3300mm(130″)
Machine Size 2470 x 980 x 1320mm 3290 x 980 x 1320mm 4010 x 980 x 1320mm
Work Table Size 1860 x 1920 x 1000mm 2660 x 1920 x 1000mm 3360 x 1920 x 1000mm
Packing Size 2600 x 1300 x 1650mm 3600 x 1500 x 1650mm 4250 x 1500 x 1650mm
Net Weight 1380kg 1880kg 2180kg
