UV Flatbed Printer FB-2513R/ FB-2513Rs image UV Flatbed Printer FB-2513R/ FB-2513Rs image

The FB-2513R offers uncomparable print capabilities, permitting you to explore a new world of merchandise and applications, including heavy, rigid materials up to 12cm thick. It is designed to print higher gradient color in sign and decoration industry, makes background wall of more visual impact, and gain more impressive layering with bump impact.

overview images

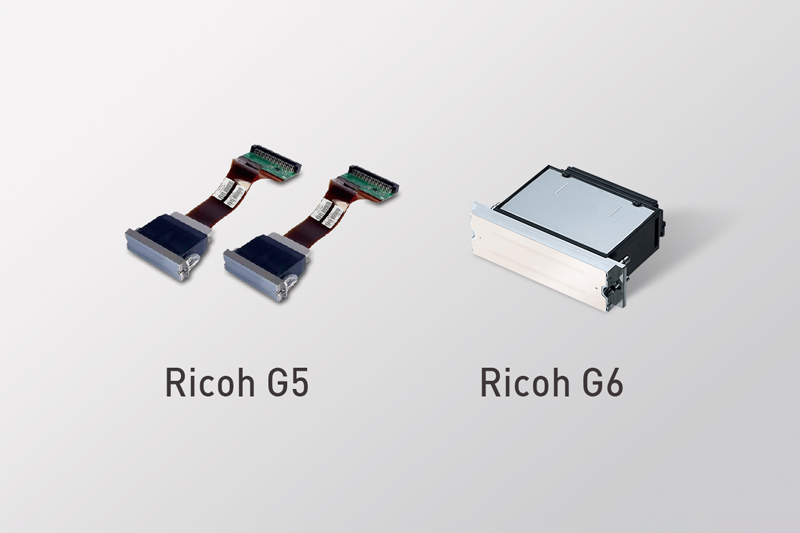

Ricoh GEN5 & GEN6 Available,meet the demand of different clients.

overview images

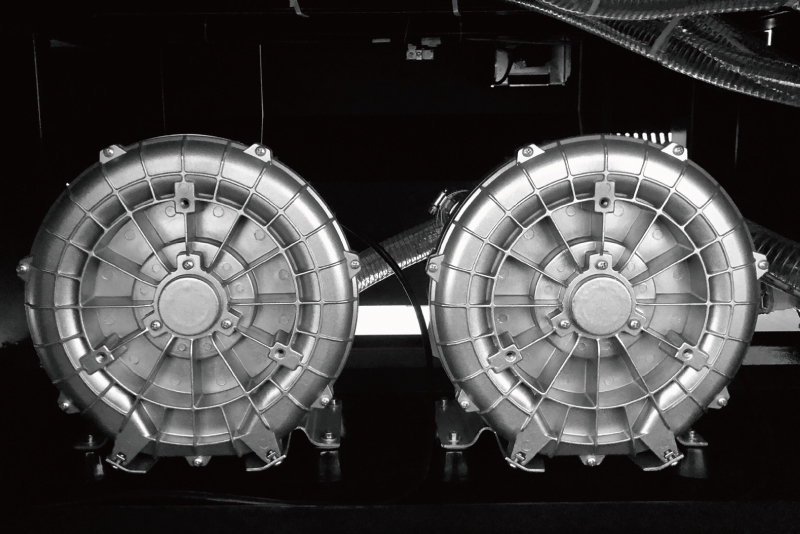

Double built-in high-power inependent vacuum pump. Guarantee the powerful suction.

overview images

Advanced ClS Machine Vision System (Optional)

Detect not only the object position, but also the direction automatically.Greatly increase the positioning precision and work efficiency.

overview images

User-friendly projecting touch screen. Make the operation to be at your fingertips.

overview images

Negative Pressure System

Equipped with two advanced separate negative pressure systems (One for color and varnish, One for white). Stabilize the air pressure inside the ink supply system, one button to fill the ink. Simply and effectively ensure the continuous ink flow, assure the maintenance of multi-heads equipment to be easy as well.

overview images

Automatic media height detecting function, provide great help for setting the proper print height.

overview images

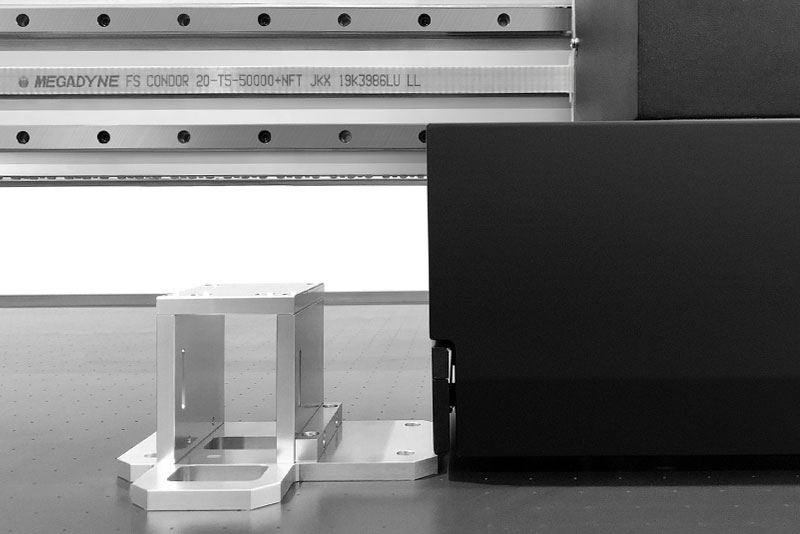

Built-in media alignment pins, guarantee the quick, simple and high precision media positioning.

overview images

Consistent design of double guide rail, guarantee the stable movement of carriage.

And one-time molding aluminum beam that ensure the high accuracy of each carriage movement.

overview images

Anti-collision system is equipped to protect the printhead and carriage all the time.

overview images

Divide the vacuum table to 4 zones. Concentrate energy, Save energy.

And electric controlled. More convenient

overview images

Quality anti-static device is optional. eliminate static efficiently and reliably from printer and the media. Gurantee the high precision output.

overview images

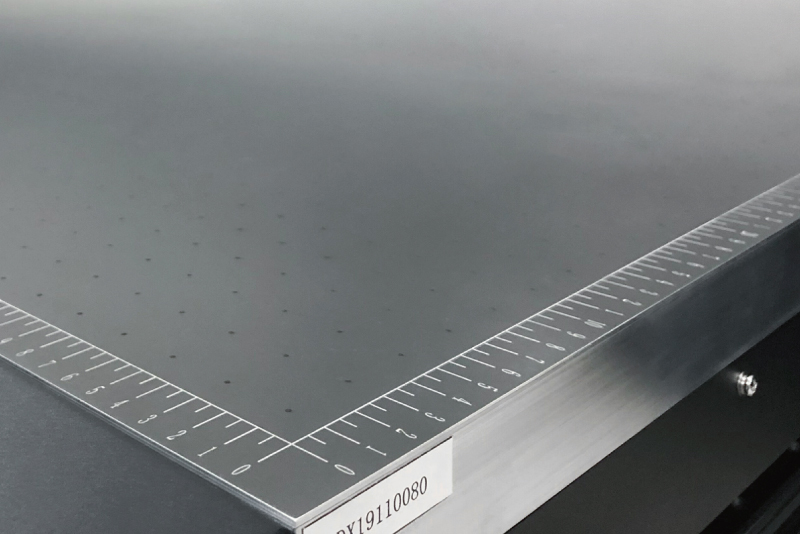

Oxidation treated high precision platform. High resolution, easy to clean.

overview images

Advanced magnetic levitation transmission is available (optional). Easy to clean, durable. Built for fast,stable, and long-term running.

overview images

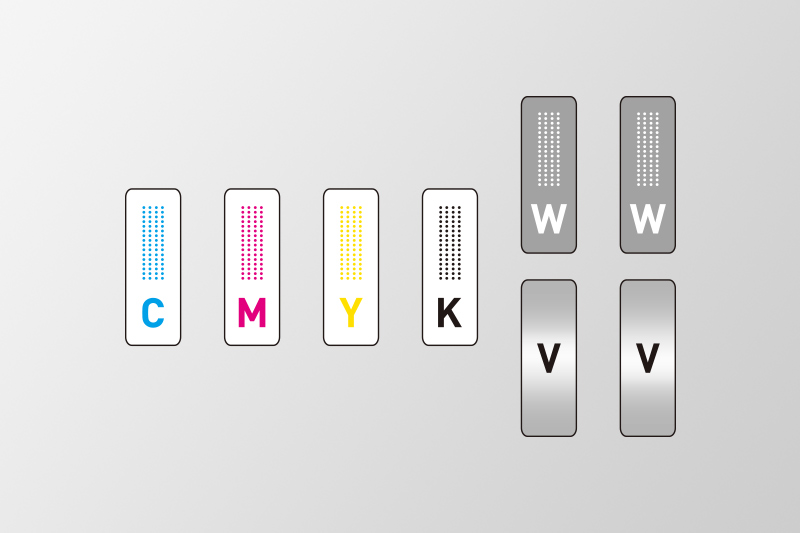

Multi-head available. System support maximum 8 printheads.
Meet the demands of high-speed printing.

overview images

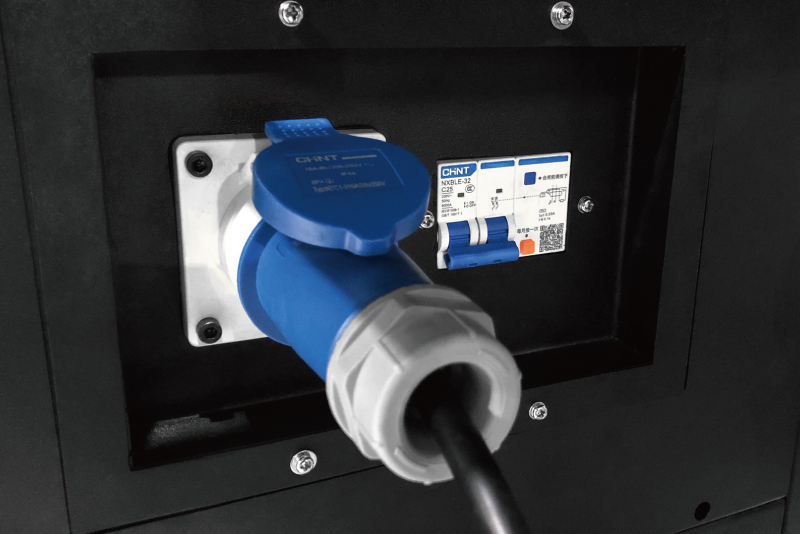

Branded circuit breaker to protect the safety of the whole electronic system.

overview images

Lack ink alarm system is equipped. Give LED light signal reminding operator to fill the ink. No interruption during printing job any more.

overview images

White ink stir system is equipped. Decrease the problems caused by white ink precipitation.

overview images

Screw rod type transmission for the Y axis. Guarantee the high precision of each printing.

overview images

High grade two-layer Germany Igus drag chain. Effectively protect ink tube and cables.

Application

application images
application images
application images
application images
application images
application images

The FB-2513R offers uncomparable print capabilities, permitting you to explore a new world of merchandise and applications, including heavy, rigid materials up to 12cm thick. It is designed to print higher gradient color in sign and decoration industry, makes background wall of more visual impact, and gain more impressive layering with bump impact.

Model No. FB-2513R FB-2513Rs
Printhead Ricoh Gen5 Ricoh Gen6
Number of Printheads 2/3/4/5/6/8 pcs optional
Resolution Max 1440 dpi
Media Thickness 12 cm MAX
Size 2500 x 1300 (mm)
Types Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC , PP, PE, PTFE Etc.
Speed Draft 14 sqm/h(with 3 Print heads, Color+ White) 17 sqm/h(with 3 Print heads, Color+ White)
Standard 10 sqm/h(with 3 Print heads, Color+ White) 12 sqm/h(with 3 Print heads, Color+ White)
Photo 8 sqm/h(with 3 Print heads, Color+ White) 10 sqm/h(with 3 Print heads, Color+ White)
Ink Type UV Ink
Color CMYK/ CMYK + W/ CMYK + W + V
Capacity 500 ML
Dry System UV_LED light system
Rip Software Maintop (Standard) / FlexiPRINT (Optional)
PC Operation System Windows 7/XP/10
Operation environment Temperature: 20-28℃, Humidity: 40%-60%
Power Supply AC 110/ 220V, 50/ 60Hz, 4800W
Image Format TIFF, JPEG, EPS, PDF…
Size Machine L4160 × W2130 × H1520 mm
Packing L4300 × W2280 × H1780 mm
Weight Machine 870 KG
Packing 1100 KG

Application

application images
application images
application images
application images
application images
application images
