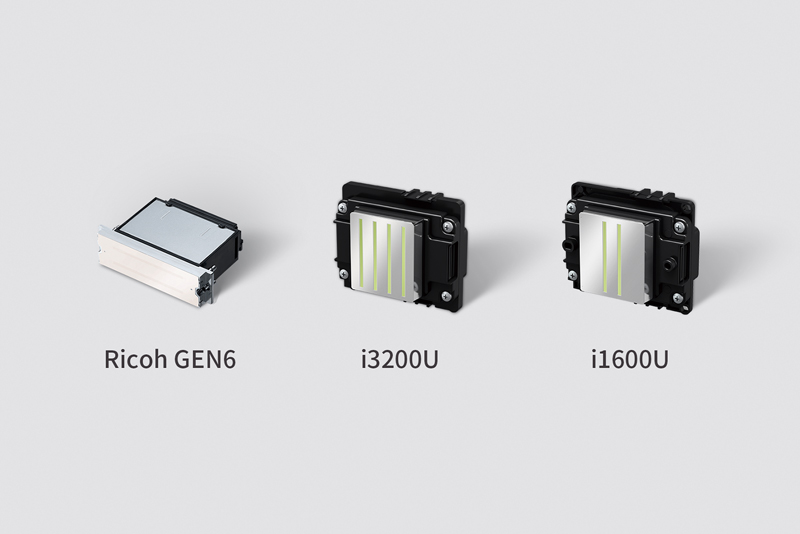

Different Printheads Available
Epson i1600 & i3200U, Ricoh GEN6 available. Meet the demand of different clients.

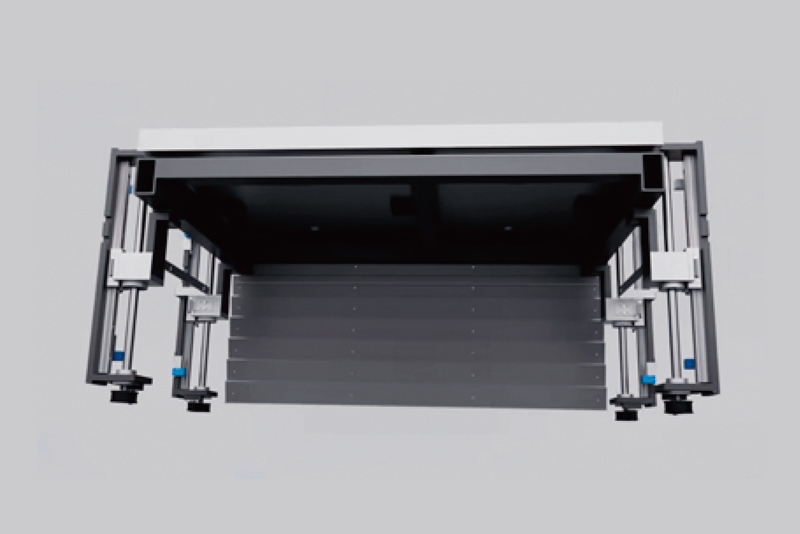

Ultra-Precision Quad-Axis Coordinated Lifting Platform
Ensures the high accuracy and high stability printing.
Support media height of max 50cm.

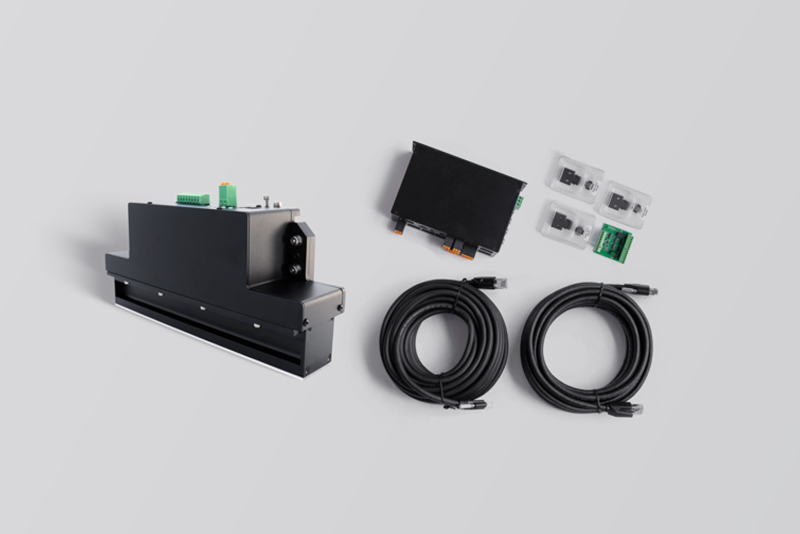

Advanced Machine Vision System (Optional)
Detects not only the object position, but also the direction automatically.Greatly increase the positioning precision and work effciency.
Magnetic Levitation Transmission Available (Optional)
Easy to clean. Durable. Built for fast,stable and long-term running.

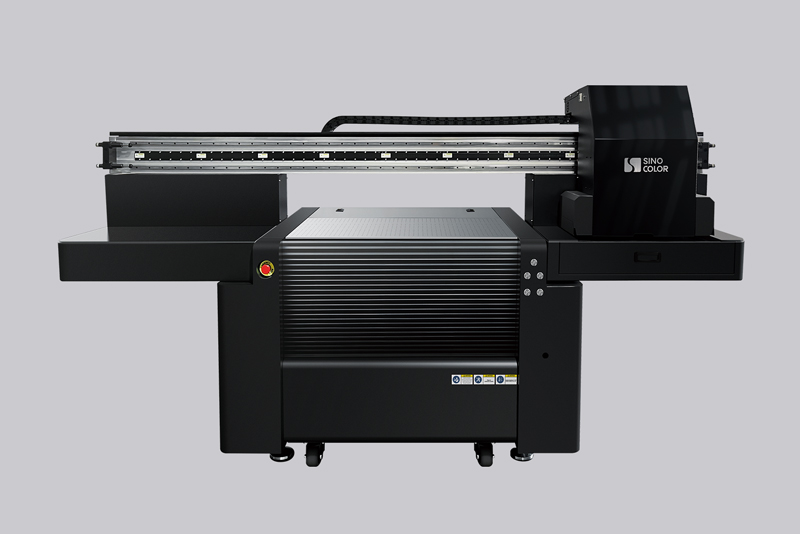

Professional Design
Designed X direction width set at 90cm instead of 60cm, effectively increasing the printing speed of the same resolution.

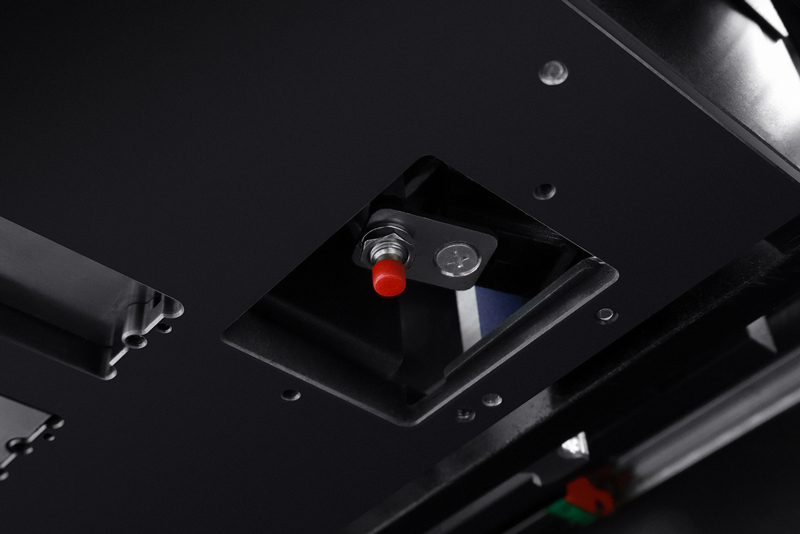

Automatic Media Height Detecting
Automatic media height detecting system is equipped, provide great help for setting the proper print height.

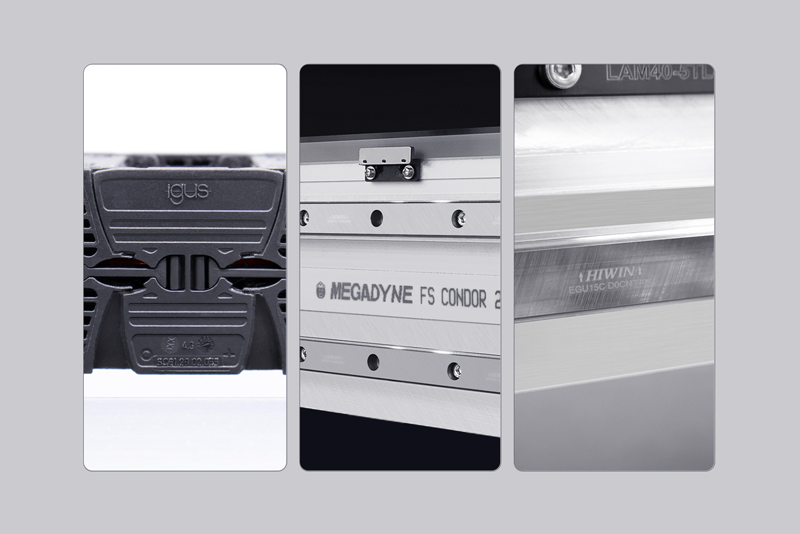

Branded Parts
Branded accessories are used for high attrition area.Greatly increased the lifetime and stability of the machine.For example, the Hiwin guide rail, German Igus drag chain, Italian Megadyne belt.

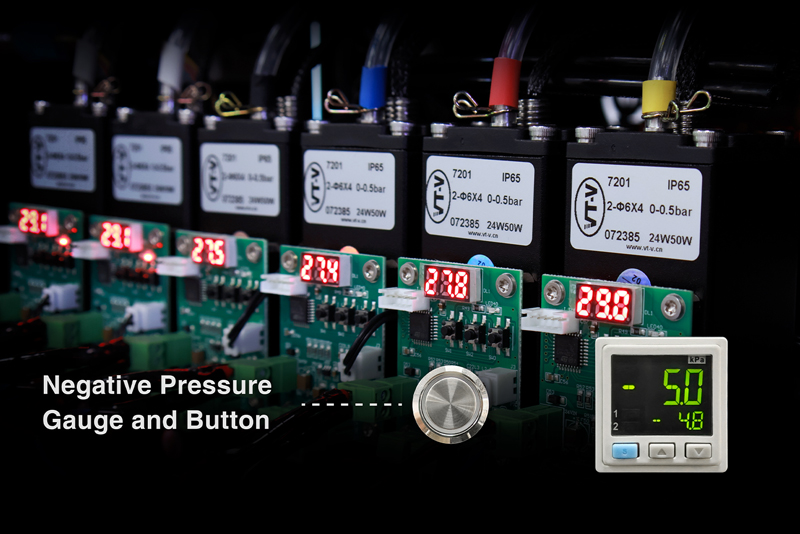

Negative Pressure System Available
Stabilize the air pressure inside the ink supply system,one button to fill the ink. Simply and effectively ensure the continuous ink flow, assure the maintenance of multi-heads equipment to be easy as well.
High-power Independent Vacuum System
Much more practical and functional than the vacuum system with small-power internal vacuum fans. Ensure the perfect printing of hard or thin/soft material.

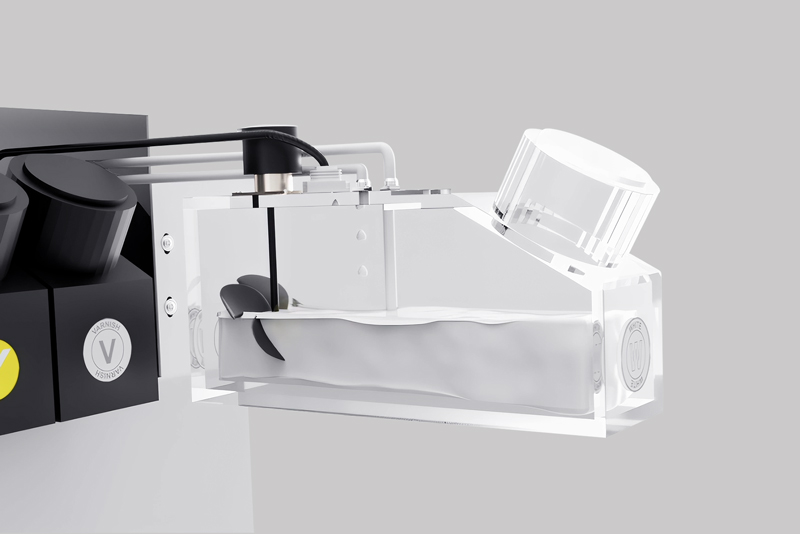

White Ink Stir System
White ink stir system is equipped. Decrease the problems caused by white ink precipitation.

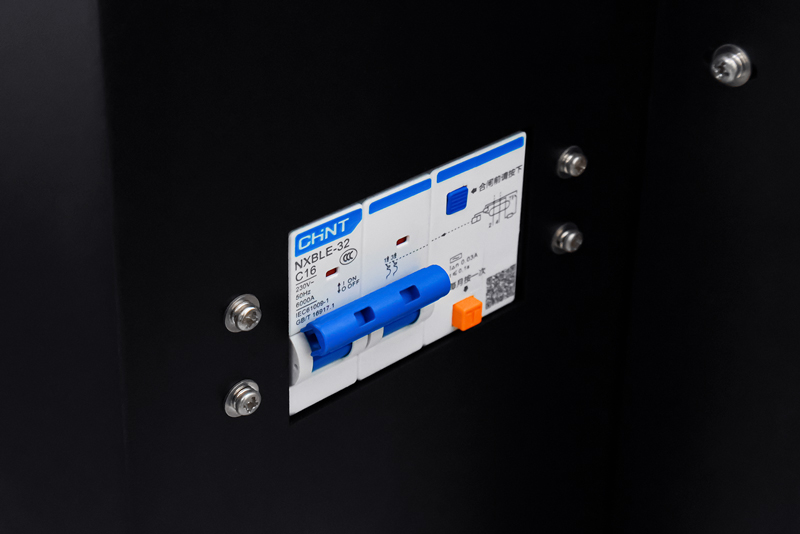

Branded Circuit Breaker
Protect the safety of the whole electronic system.

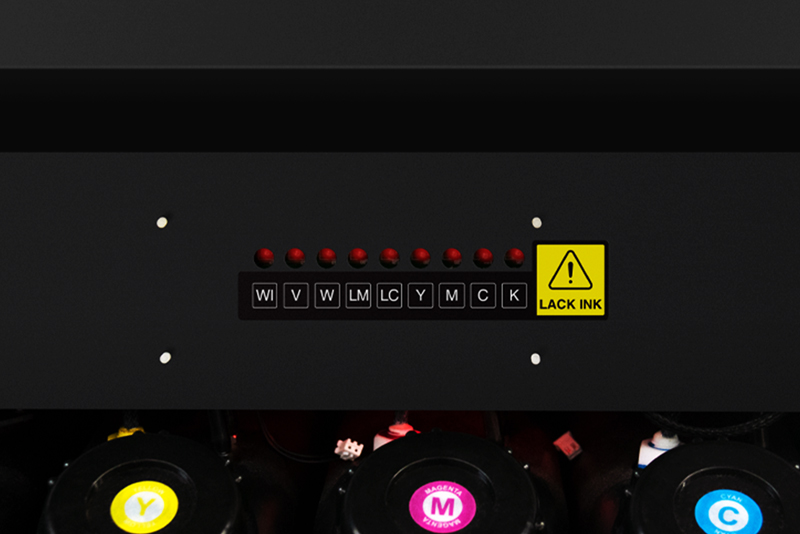

Lack Ink Alarm System
Lack ink alarm system is equipped, gives LED light signal reminding operator to fill the ink. No interruption during printing job any more.

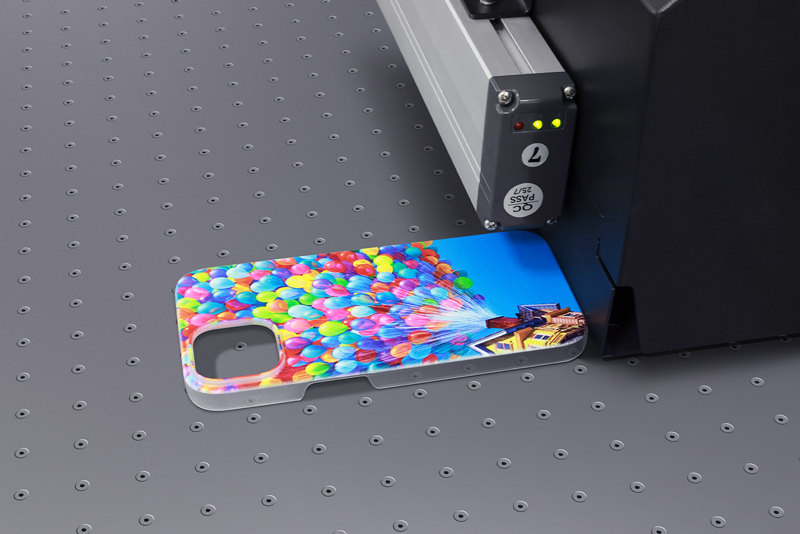

Standard Anti-collision System
Printer will automatically stop when the printhead carriage hit any unexpected object during working, protect the printhead and carriage all the time.

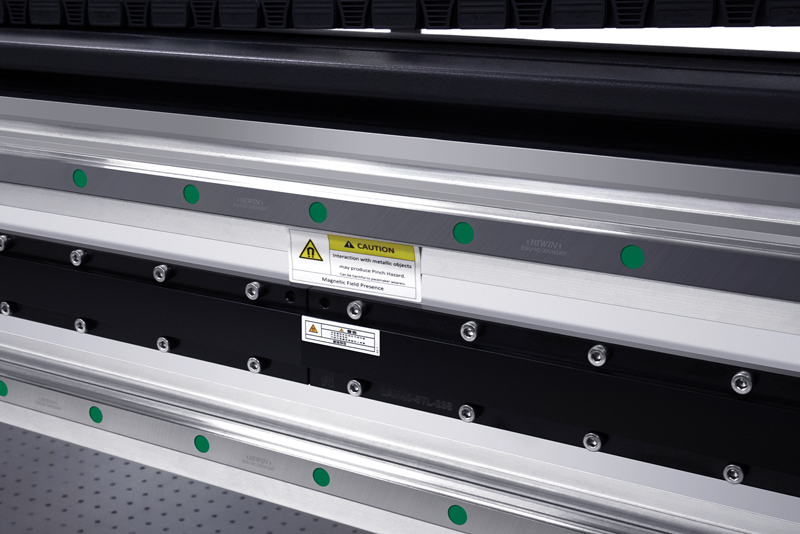

One-time Molding Aluminum Beam
Ensure the high accuracy of each carriage movement.
Application
| Model No. | FB-0906D/S Max | FB-0906Rs Max | |
| Printhead | 2-8 Epson i1600U/ i3200U | 2-8 pcs Ricoh GEN5/ GEN6 | |
| Resolution | Max 2400 dpi | Max 1200 dpi | |
| Media | Thickness | 50 cm Max | |
| Size | 900 x 600 (mm) | ||
| Types | Glass, Acrylic, Ceramic, Metal, Paper, UV DTF Film, Wood, Leather, PVC , PP, PE, PTFE Etc. | ||
| Speed | Draft | 3 min for A1 full size | 5min 30s for A1 size |
| Standard | 6 min for A1 full size | 8 min for A1 size | |
| Quality | 9 min for A1 full size | 13min 30s for A1 size | |
| Ink | Type | UV Ink | |
| Color | CMYK / CMYK+W / CMYK+W+V / CMYK+W+V+Primer /CMYK+W+V+Fluorescent Color or Primer | ||
| Capacity | 500 ML | ||
| Dry System | UV_LED light system | ||
| PC Operation System | Windows 7, Windows XP, Windows 10 | ||
| Operation environment | Temperature: 20-28℃, Humidity: 40%-60% | ||
| Rip Software | Maintop / FlexiPRINT (Optional) / Onyx (Optional) | ||
| Image Format | TIFF, JPEG, EPS, PDF | ||
| Power | AC 110/ 220V, 50/ 60Hz, 1800W | ||
