Features
Minimum Order : No minimum order requirements.
Warranty : 12 months trouble-free warranty. During warranty period, we will send free parts for replacement by DHL, while broken parts should be sent back. (not including printhead)
Technical Support : Lifetime online technical support available.
Price : All prices above are based on EXW.
Payment : 50% T/T in advance, balance payment should be paid upon copy of B/L.
Shipping : Shipping by Sea. Shipping cost and time depends on your sea port of destination. Delivery lead time is 10 working days.

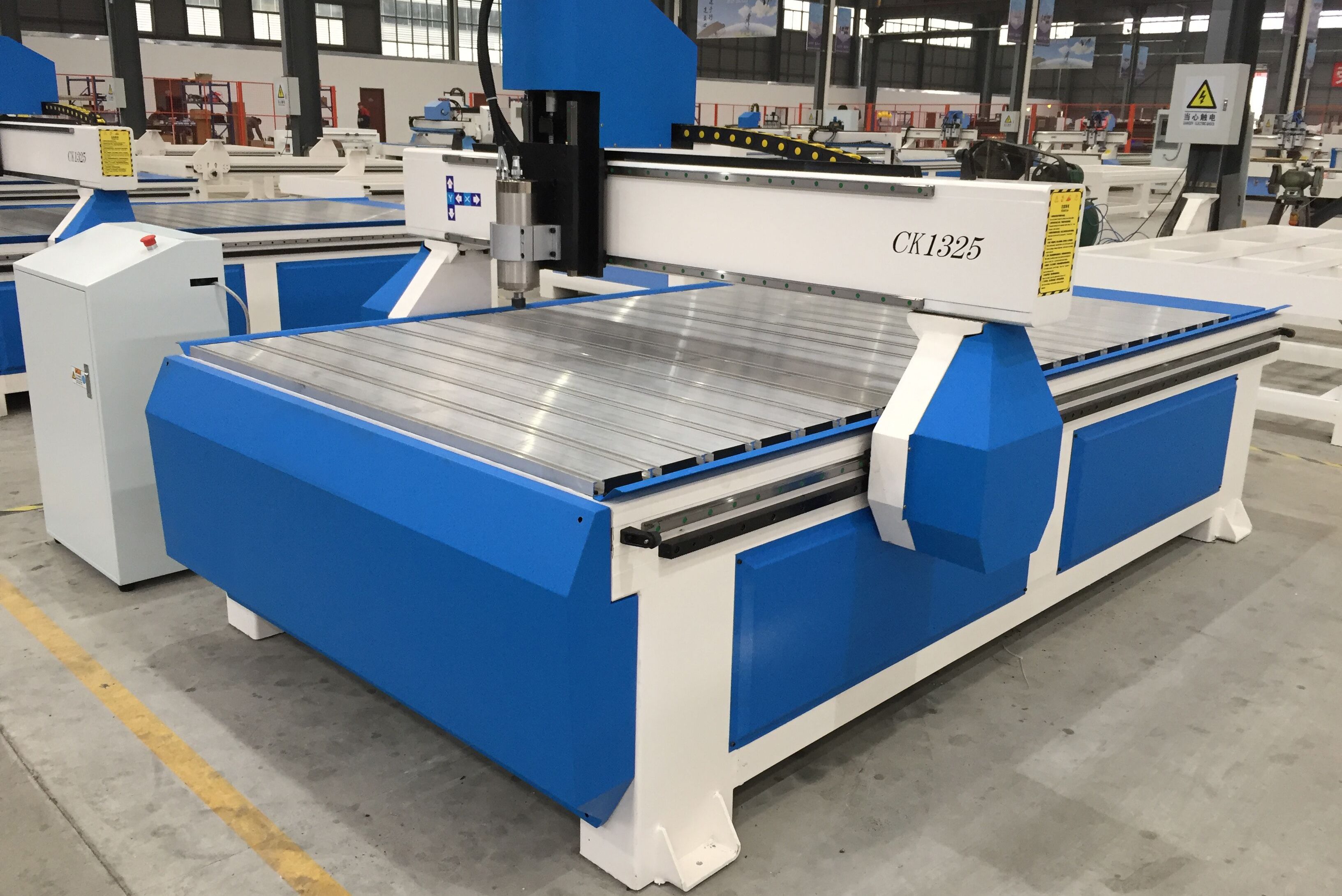

GALLERY
SPECIFICATIONS
| Model No. | CK-2513 | CK-2030 | |||
| Spindle Motor Power | 220V3KW Water cooling spindle | 220V3KW Air cooling spindle | |||
| Spindle Motor Speed | 2400 rpm | 2400 rpm | |||
| Spindle Motor Size | 1 pc: Φ12.7 Φ6 Φ4 Φ3.175 | ||||
| Working Stroke | X:1300mm, Y:2500mm, Z:150mm | X:2000mm, Y:3000mm, Z:200mm | |||
| Working Size | 1220mm*2440mm | 2000*3000 mm | |||
| Fast Moving speed | X:25m/min, Y20m/min, Z:20m/min | ||||
| Guide Rail Type | Japan THK square orbit | ||||
| Rack Type | High precision helical rack drive, Z axis 2005 screw drive | ||||
| Limit switch | Schneider optical limiting | ||||
| Drive type | X,Y,Z: Leadshine drive DMA860H | ||||
| Workbench | T type aluminum profile | ||||
| Power Supply | 220V 50-60hz, 5kw | 380V 50-60HZ, 14kw | |||
| Control system | Tianhong English Reiz A11 system | ||||
| Oil supply | Manual hydraulic oil (protective slider) | ||||
| Machine Size | 2000MM*3000MM*1600MM | 2700MM*3500MM*1600MM | |||
| Machine Weight | 1300 kg | 1700 kg | |||
| Packing Size | 2120MM*3300MM*1850MM / 1pc |
|
|||
| EXW PRICE | US$6,500 | US$8,500 | |||
