UV Roll to Roll Printer UV-1260S image UV Roll to Roll Printer UV-1260S image

Our breakthrough UV technology addresses durability issues related to abrasion and solvents and also provides more effective, opaque white ink performance. This UV printing process is great for a very wide variety of commercial and industrial applications . The Epson Printhead series UV printer delivers flawless graphics and text at resolutions up to 2400dpi. Especially for the Epson i3200-U, Is officially recommend by Epson Group for UV Printing. Made for fast and durable printing.

overview images

Epson i3200-U Printheads

Perfectly combined the hight speed and high quality printing effect.

overview images

Water Cooling UV-LED Lamp

It is one of the world’s top UV-LED, long lifespan, low heat, and instant on-off.

overview images

Wide Pinch Roller

Wide pinch roller keeps smooth movement of the media. And it has proper pressure to ensure accurate media step while not make any footprint of the pinch roller.

overview images

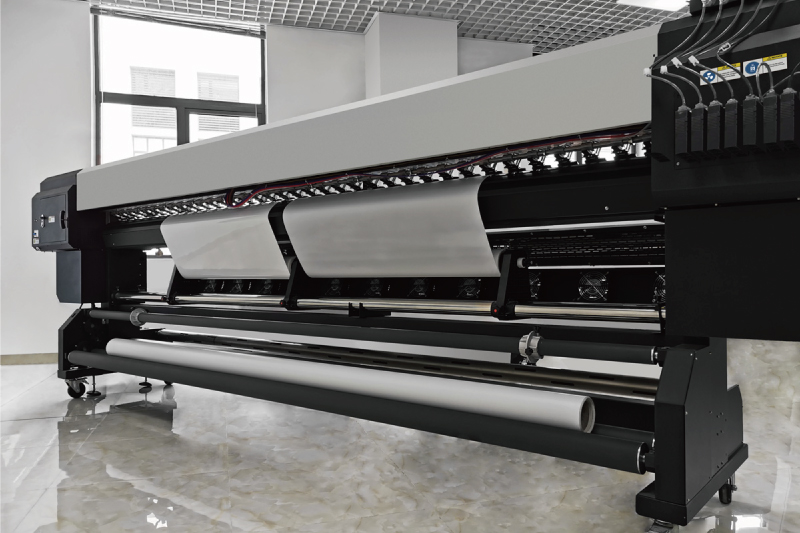

Media Feeding System

Two Sets Media Feeding System are standard equipped. Enable to install both 3.2m heavy banner and 2 rolls small size paper.

overview images

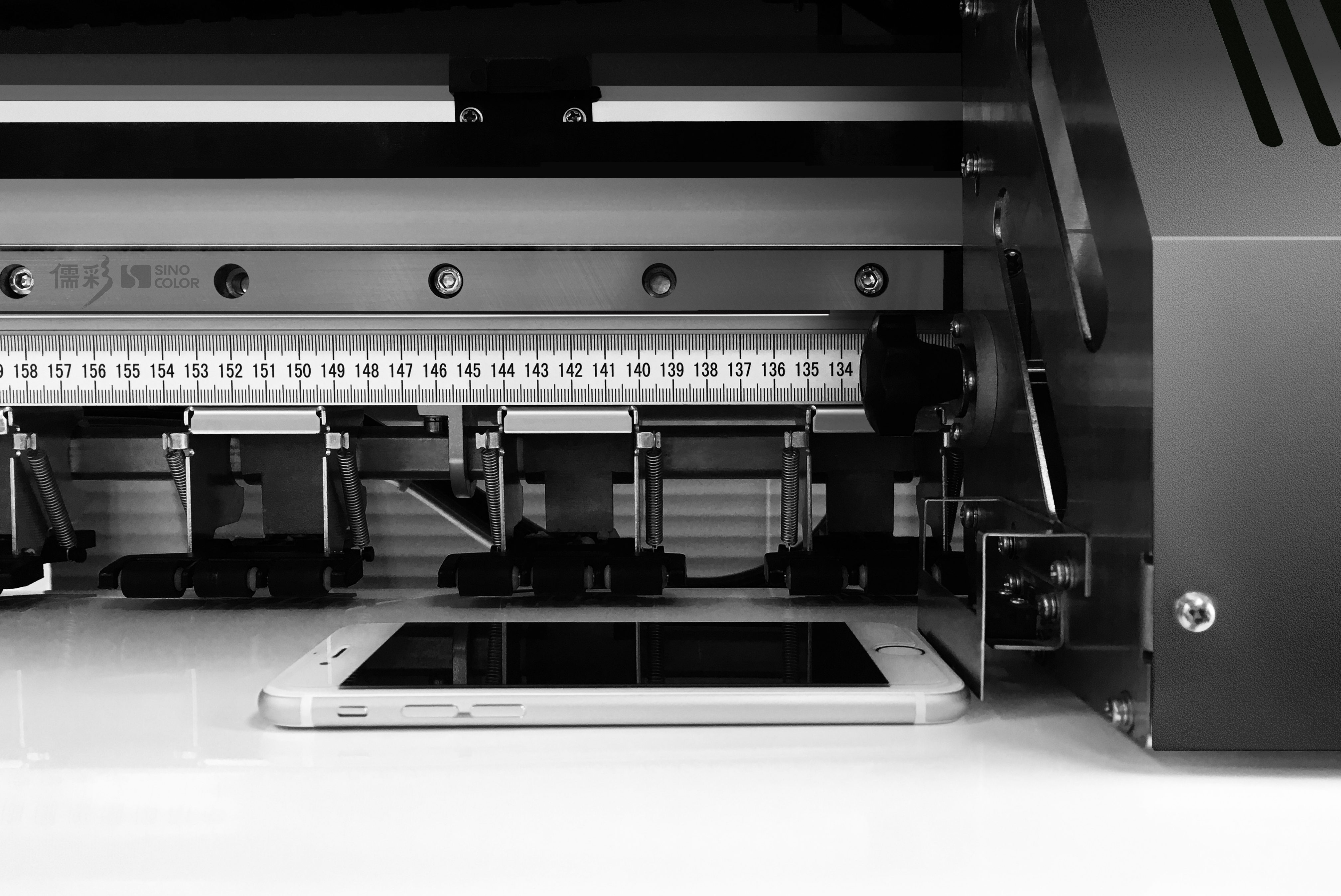

Anti-collision Function

Anti-collision system is equipped to protect the printhead and carriage all the time

overview images

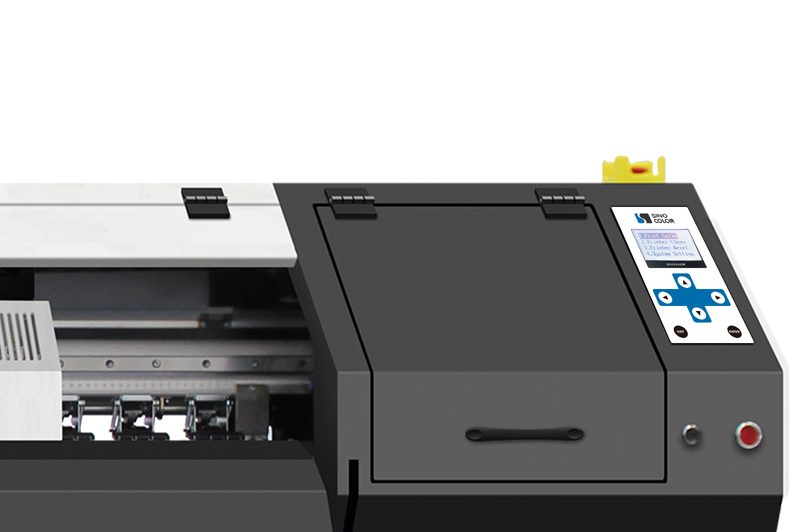

Big Functional Control Panel

Adopts the latest program Intelligent Error Auto-Detection boards, it can guide user to find solution very quickly.

overview images

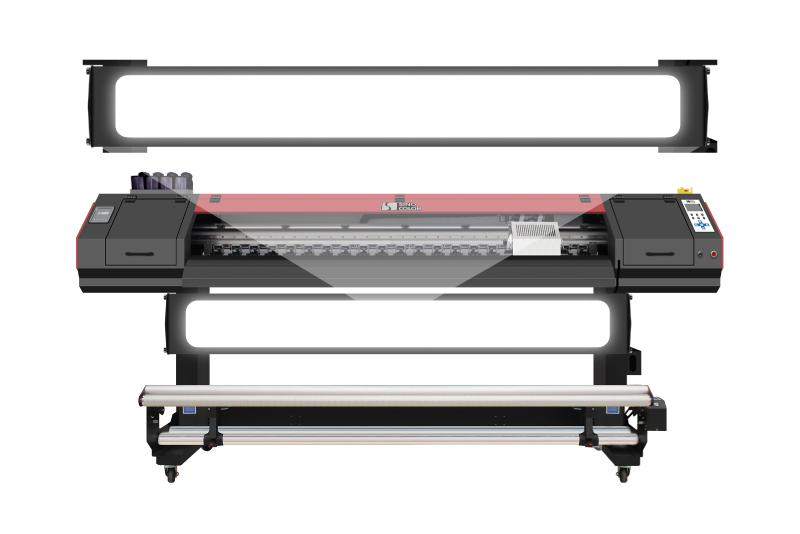

Ultrawide LED Light Bar (optional Part)

Convenient for checking backlit material printing quality.



overview images

Italian Megadyne Belt

High quality. Durable. Guarantee smooth movement of carriage.

overview images

German IGUS Drag Chain

IGUS drag chain itself is a guarantee of quality, takes the printer stability to a new level.

overview images

Aluminum Moulding Frame

Increase machine accuracy and extend machine durability.

overview images

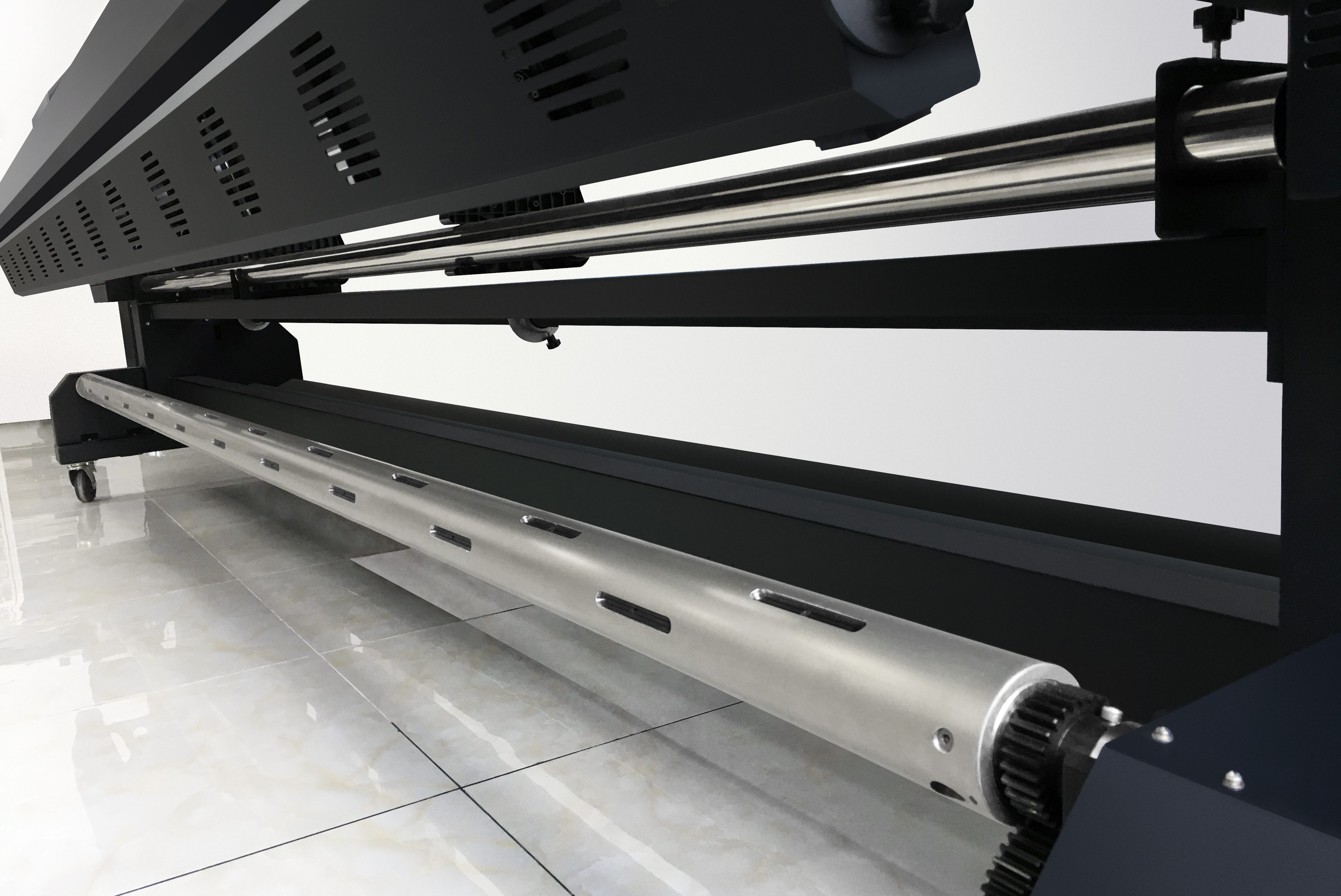

Tension Take-up System With Inflatable Bar (Optional)

It gives material a continuous and balanced pulling strength to assure a perfect material collecting, it is specially good for thin and soft type material like fabric, ceiling film etc.

overview images

Double Slider

Since the double heads printer has wider carriage, double slider is necessary to ensure stable movement of the carriage.

overview images

Variable Dot Print Technology

Permitting the printer to provide smooth gradations, exceptional solid colors and optimum image quality in all print modes.

overview images

LED Lamp Strip

with the LED lamp strip, uses could check out the print result more easily.

Application

application images
application images
application images
application images
application images
application images

Our breakthrough UV technology addresses durability issues related to abrasion and solvents and also provides more effective, opaque white ink performance. This UV printing process is great for a very wide variety of commercial and industrial applications . The Epson Printhead series UV printer delivers flawless graphics and text at resolutions up to 2400dpi. Especially for the Epson i3200-U, Is officially recommend by Epson Group for UV Printing. Made for fast and durable printing.

Model NO. UV-1260S UV-1260D
Printhead 2 x Epson i3200-U 2 x Epson i1600-U
Resolution(dpi) 2400 dpi MAX
Media Width 3.2 meter
Types Canvas, Leather, PET Film, Reflective Film, Soft Ceiling Film and a lot more flexible material…
Speed Draft 50 ㎡/h 55 ㎡/h
Production 28 ㎡/h 30 ㎡/h
Quality 14 ㎡/h 16 ㎡/h
Ink Color CMYK / CMYK+W
Ink Type UV Ink
Ink Curing High Quality Water Cooling UV-LED Lamp
Cleaning Automatic Cleaning, Anti-Clogging Flash Function & Capping System
Feed & Take Up Automatic Media Feeding (Standard) & Take Up System (Optional)
Rip Software Maintop(Standard)/FlexiPrint(Optional)
Interface USB 3.0
Power AC 110/ 220V, 50/ 60Hz, 1900W
Size Machine L4530×W710×H1395 mm
Packing L4610×W1000×H740 mm
Weight Machine 500 KG
Packing 640 KG

Application

application images
application images
application images
application images
application images
application images
